ASC-6 Air Scrap Chopper

Description

ASC-6 AIR SCRAP CHOPPER

Using the same principle as our Ram Driven Mechanical Scrap Chopper, this pneumatically powered chopper is designed to shear scrap material from .004″ (0.1mm) to .074″ (1.8mm) thick mild steel. Provides controlled chopping while integral dampeners absorb snap through shock. The helically ground upper blade, made of high chrome tool steel, shears nearly any kind of material.

Standard Features

• Powerful double acting cylinder provides controlled chopping while integral dampeners absorb snap through shock.
• Helical-ground blade which chops wide variety of materials from 0.004″-.1875″ CRS without adjustment.
• Rugged cast iron construction.

Optional Feature:

• Counter with Timed Output: Allows multiple press strokes betweencycles of the cutter. Useful with short progression dies.

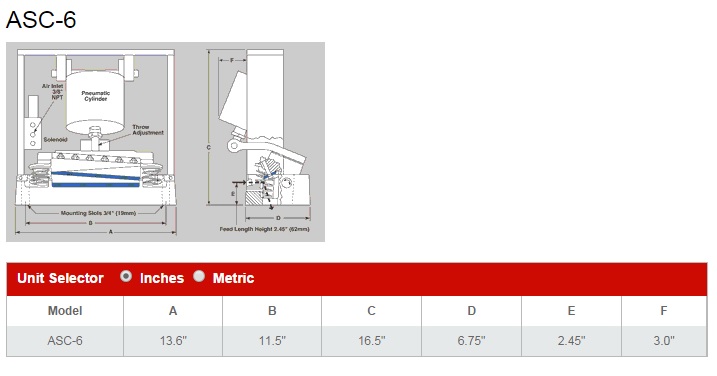

_{Note: Guard Removed for Photo
Note: Solenoid Voltage is 120 VAC, Single Phase, 50/60 Hz. Other Voltages available – 240 VAC, 24 VDC.}
