Description

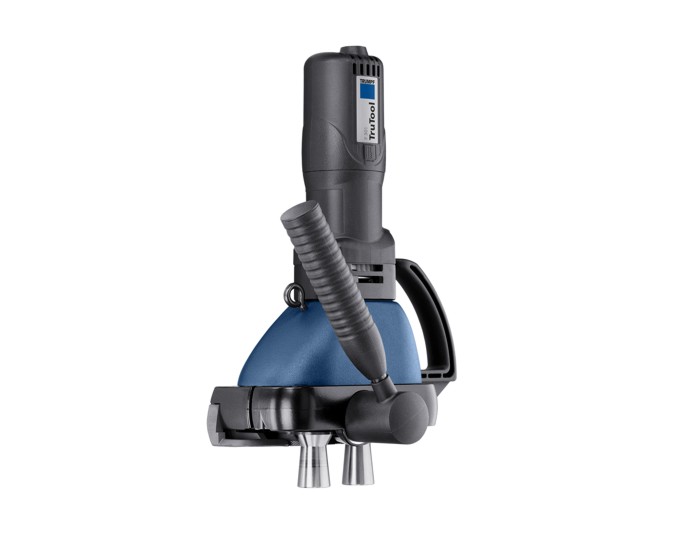

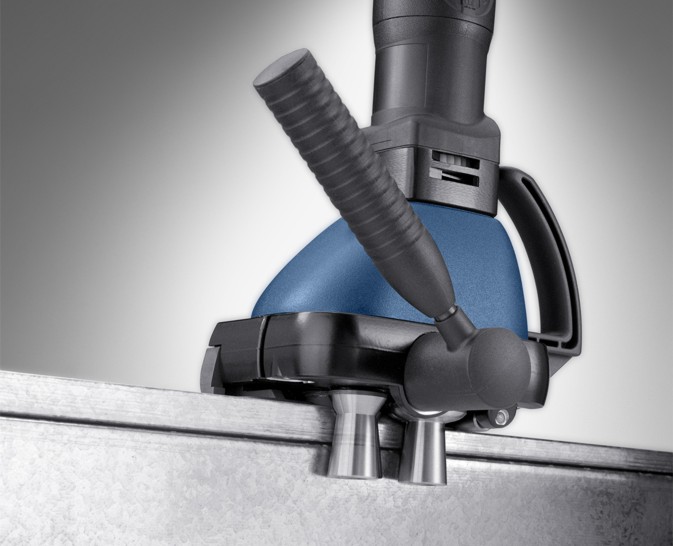

Simple closing of ducts in thin sheet range.With the TruTool F 301, you can close Pittsburgh seams effortlessly on straight or curved ducts with sheet thicknesses of 0.45 mm – 1 mm for mild steel. There is no need for refitting when processing formed or folded pieces. The adjustment to the sheet thickness is automatic and the forward feed guarantees a consistent and tight seam.
- Easy to use - With the TruTool F 301 you can close formed or folded pieces without refitting the machine.

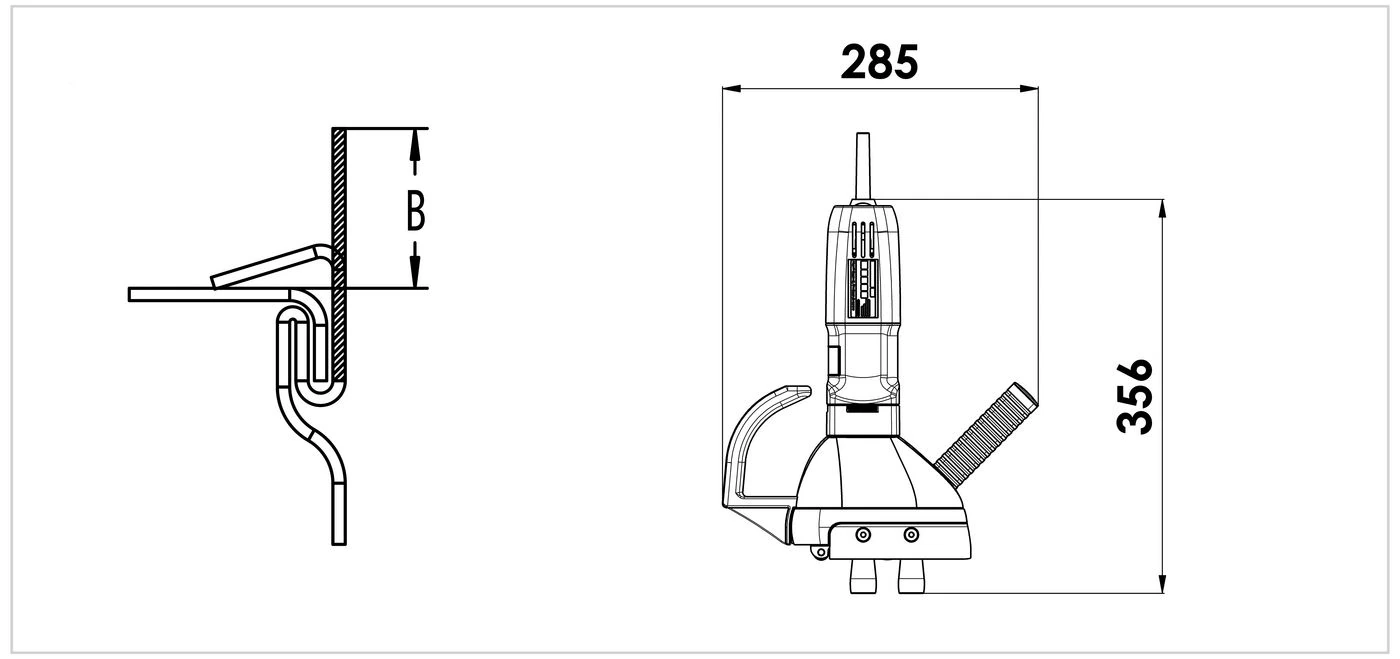

- Flange height and sheet thickness - Suitable for flange heights of 9 mm – 13 mm and for sheet thicknesses of 0.75 mm – 1.25 mm.
- Excellent process reliability - Automatic adjustment to the sheet thickness gives you consistent seam results.

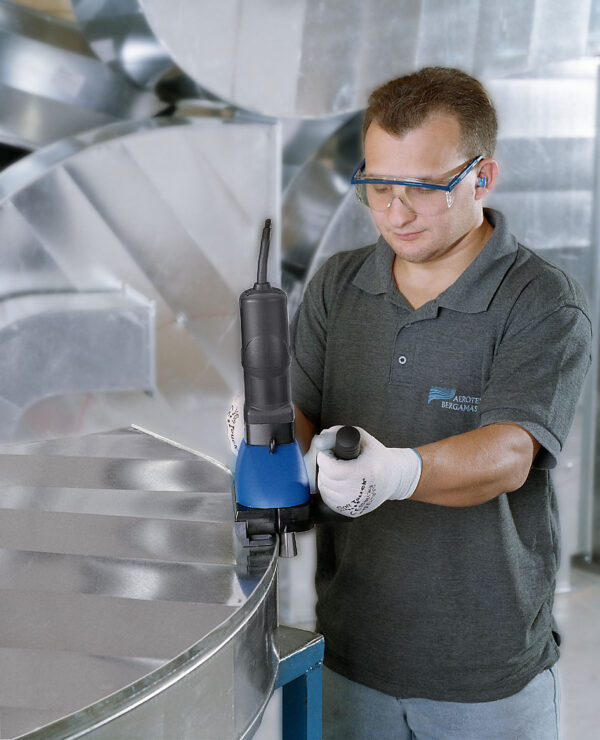

- Area of application- With the TruTool F 301, you can close seams on straight and curved ducts.
Applications
◾Heating and ventilation works
◾Chimney works
◾House-front construction
◾Industrial ventilators
