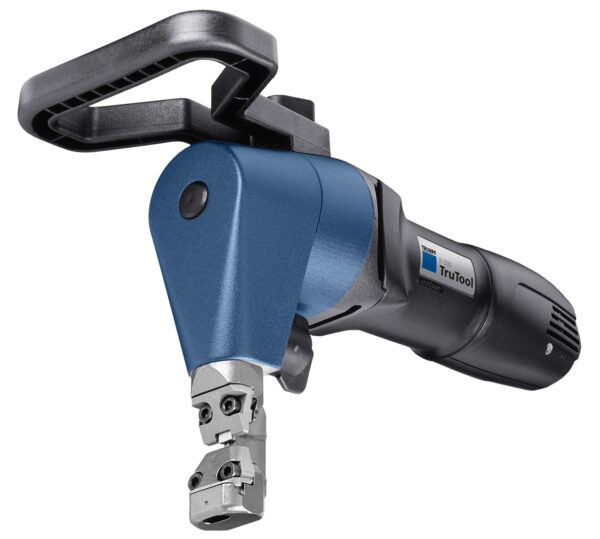

TruTool N 500 Nibbler

$4,995.00

Out of stock

SKU: 2662843 Categories: , Tags: , , , , , , Brand:

Description

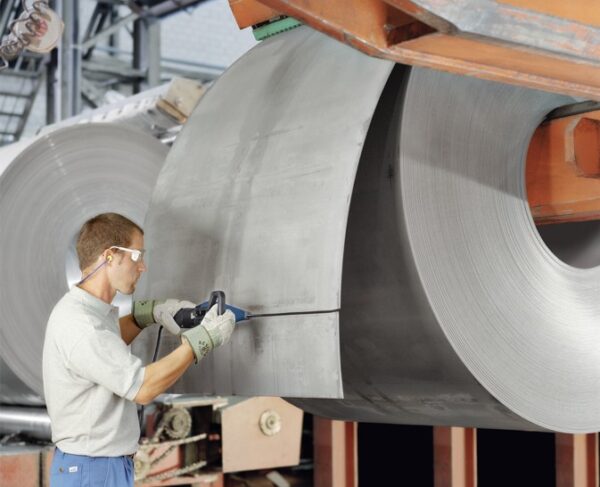

Powerful in four directions. The TruTool N 500 offers unique versatility. Since you can cut in four directions, even backwards, you can dismantle tanks and containers, and process coils and workpieces with bends of up to 90°. The machine is also well-suited to cutting high-tensile materials. The optimal weight/performance ratio of 8.8 lbs. against a sheet thickness of 0.2 in. is particularly impressive.

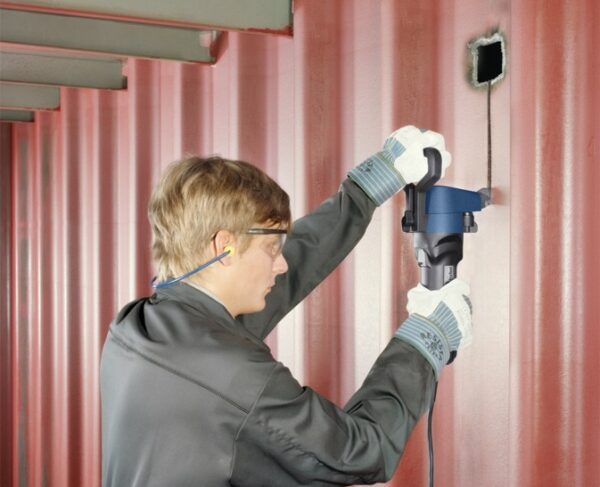

  • 4 cutting directions - The machine can be turned through 360° in 4 steps of 90°. With the TruTool N 500, you can even cut in reverse. Since you can pull the tool toward you horizontally, it is ideal for relief cuts. You can also move the nibbler vertically downward for tank dismantling. All of this is achieved with minimal force and no emissions.
  • Rectangular punch with flexibility for profiles - Ideal for work in hard-to-reach areas, for cuts across edges and weld seams.

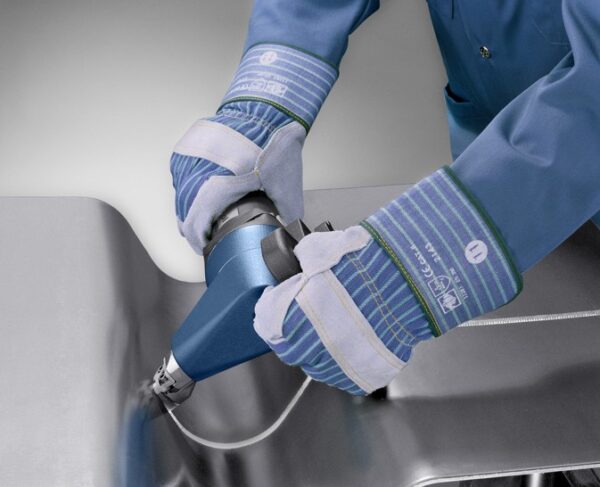

  • Perfect for processing stainless steel- The TruTool N 500 is well-suited to cutting high-tensile materials. Specifically designed punches and dies ensure perfect cuts.
Nibblers: Video on the area of application



Dimensional drawing, TruTool N 500





Electro variable speed control

















Applications

◾Metal fitting shops/Recesses and fitting work
◾Disassembly of tanks and containers
◾Roof and fasade construction
◾Container construction
◾Car-body shops

*There may be up to a 2 week lead time after receipt of order on Trumpf TruTools. For availablity, please call (317) 245-4040 or emailadmin@productivityresources.com.

Additional information

Weight 6.80388555 lbs
Location

Max Sheet Thickness:

Working Speed

Start Hole Diameter:

Smallest Radius

Rated Input Power:

Strokes at Nominal Load:
