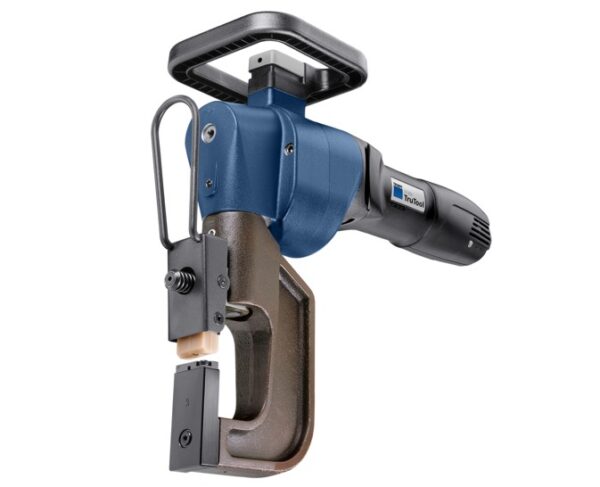

TruTool TF 350 Fastener

Name: TruTool TF 350 Fastener
Brand: Trumpf
SKU: 1893412
Availability: OutOfStock

$4,700.00

Out of stock

SKU: 1893412 Categories: Fasteners, Fasteners Tags: 1893412, fastener, fasteners, power fastener, tf 350, tf-350, tf350, trumpf, trutool Brand: Trumpf

Description

Fast and economical connection. Joining is the simplest and most cost-effective way of connecting two or more metal parts. With the TruTool TF 350 you can produce a form-fitting material connection with joints that are easy to reproduce using cold forming. Whether the workpieces are coated or uncoated is irrelevant. The TruTool TF 350 joins overall material thicknesses of 0.8 mm to max. 4 mm. The result is a long-lasting connection in one operation, without additional connecting elements.

Straight to the point - The connection point is secure and resilient and the joining points are resistant to corrosion.
No fasteners - No screws or rivets are used, which saves costs and simplifies handling.
Perfect surface in one operation - The joining quality does not depend on whether surfaces are coated or uncoated.
120 joining points per minute - Simple single stroke activation with consistent strength and connection quality.

Power fasteners: Video on the area of application

TruTool TF 350, dimensional drawing

Power fastener joining bottom

For upwards joining direction

For the upper tool, you have the choice between a tilting arm for the die or a fixed die arm. For the lower tool, choose the fixed punch arm. The die arm and die are determined by the material type and thickness.

For joining points at the bottom

For the upper tool, you have the choice between a fixed punch arm or a tilting arm for the punch. For the lower tool, choose the fixed die arm. The die arm and die are determined by the material type and thickness.

Applications

◾Ventilation works and climate control technology
◾Container construction
◾Electrical and chemical appliances

*There may be up to a 2 week lead time after receipt of order on Trumpf TruTools. For availablity, please call (317) 245-4040 or emailadmin@productivityresources.com.

Additional information

Weight	11.33980925 lbs
Location	06032
Max Sheet Thickness:	◾Steel 400 N / mm² – 3.5 mm ◾Steel 600 N / mm² – 2.5 mm ◾Aluminium 250 N / mm² – 4 mm
Rated Input Power:	1400 W
Locking Power Max	25 kN
Max Stroke Power	2 1/s
Edge Clearance	Edge clearance min. – 8 mm Edge clearance max. – 58 mm Flange height max. – 36 mm
